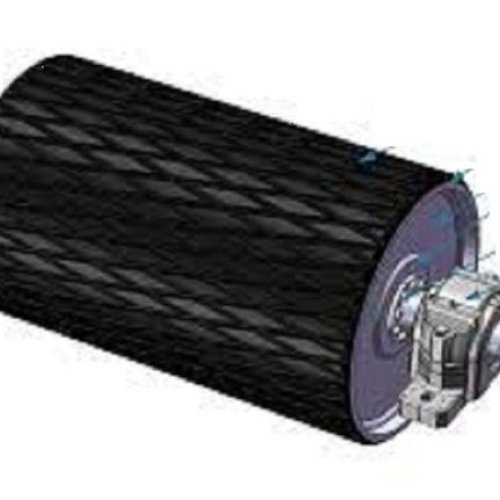

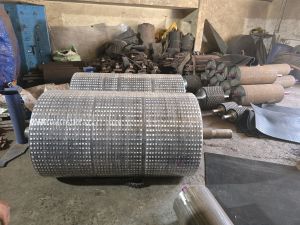

Conveyor Drive Pulley

Conveyor Drive Pulley | Drive Drum Pulley for Belt Conveyor

A conveyor drive pulley, also known as a head or drive drum, is a key component of a belt conveyor drive system. The drive pulley is connected to the motor, usually through a gearbox, and provides the necessary torque to move the conveyor belt. We offer conveyor drive pulleys or complete drive system..

APPLICATION

The conveyor drive pulley is typically located at the discharge end of the conveyor system, opposite the tail pulley. The primary function of the drive pulley is to transmit power from the motor to the conveyor belt, causing it to move and transport materials along the conveyor. It can be used in many industries such as:

aggregate & sand production,

mining & mineral processing,

food processing,

warehousing,

manufacturing

logistics applications.

FEATURES

High Power Transmission

The motor, often connected to our drive pulley through a gearbox, provides the necessary power to drive the conveyor belt. The drive pulley transforms this power into rotational motion, moving the belt.

Steel Shell With Materials Lagged

Conveyor drive pulleys are usually constructed from steel. The outer surface of the pulley, where the conveyor belt makes contact, may be lagged with rubber or other materials to provide better traction and reduce wear.

Robust Enough Shaft Design

The design of the shaft on which the drive pulley is mounted is important. It must be robust enough to handle the loads and forces exerted by the conveyor system.

Torque Limiting Devices Available

Some conveyor drive pulleys may include torque limiting devices to protect the system from overloads. These devices can prevent damage to the motor and gearbox by limiting the torque transmitted to the conveyor belt.

Safety Considerations

Safety guarding is essential for drive pulleys to prevent accidental contact with moving parts. Guards should be installed to protect personnel from potential hazards.

Belt Conveyor Drive Pulley

Belt Width 500-2800mm (19-110.2 inch)

Pulley Length 500-3200mm (19-125.9 inch)

Diameter 200-1800mm (7.8-70.8 inch)

Standard ISO9001:2008, CEMA, DIN, TUV, JIS, AS/NS, etc.

Working Life More than 30,000 hours.

Surface Flat Rubber Lagged, Ceramic Lagged, Diamond Rubber Lagged, etc.

Main Material Carbon Steel Shell

Length of conveyor drive pulley depends on the width of conveyor Belt. You can get drive pulleys with hot & cold vulcanized rubber lagging, plain or grooved, as required by client.
