Conveyor Belts
Leading Manufacturers, Wholesaler, Trader, Exporters and Retailer of Polyurethane Food Grade Conveyor Belt, PVC Conveyor Belt, Rubber Chevron Conveyor Belt and Rubber Sidewall Conveyor Belt from Ahmedabad.
| Business Type | Manufacturer, Supplier |
| Material | Polyurethane |
| Country of Origin | India |
| Belt Width | 10mm to 3000mm |
| Belt Thickness | 0.5mm - 3mm |
| Feature | Food Grade |
| Application Area | Food Applications |
Preferred Buyer From
| Location | Anywhere in India |
| Business Type | Manufacturer, Supplier |
| Material | PVC |
| Color | Green |
| Country of Origin | India |
| Belt Width | 600 mm |
| Belt Thickness | 10 mm |
| Feature | Heat Resistant |
Preferred Buyer From
| Location | Anywhere in India |
| Business Type | Manufacturer, Supplier |
| Belt Width | 1000 Mm |
| Material | Rubber |
| Belt Thickness | 12 Mm |
| Country of Origin | India |
| Feature | Heat Resistant |
| Type of Conveyor Belt | Cleated Conveyor Belt |
Preferred Buyer From
| Location | Anywhere in India |

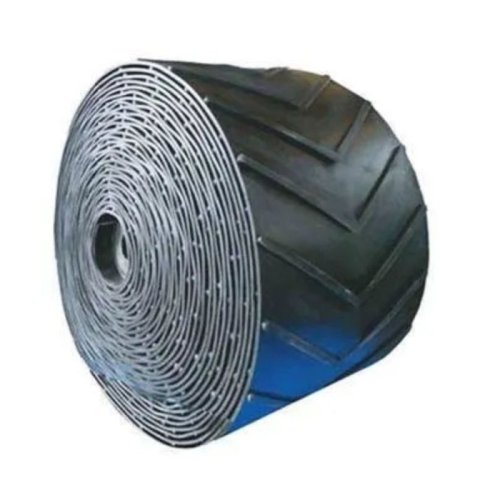

APPLICATION
Patterned conveyor belt is an inclination conveyor belt composed of Patterned work surface, flat non working surface and core. It is suitable for conveying powder, granular, small pieces materials with the inclination of 0 ~ 40 ° to prevent the material from falling. We often apply it in:
conveying bulk material in stone crushing plant,
waste recycling plant,
sand and gravel aggregate manufacturing plant,
thermal power station,
concrete mixer plant,
mine mining plant,
metallurgy plant,
port / terminals/ dockside, etc
FEATURES
1. There is no joint in belt carcass
2. Long service life
3. Cleats and top cover rubber are vulcanized integrally
3. Cleat pattern, angle and pitch are designed elaborately
4. There are open type and closed type, suitable for bulk or bagged materials such as powder and granule with incline less than 45°.
Type Cleat Size (mm) Belt Width (mm)
CV, full width Cleat Height=5; 10
Cleat Width= full width
Cleat Pitch=100 300-1200
CV, closed Cleat Height=15
Cleat Width=300; 450
Cleat Pitch=250; 300 400-1200
CV, open Cleat Height=15
Cleat Width=385; 600; 750
Cleat Pitch=250 450-1200
CP, open Cleat Height=17
Cleat Width=300; 440; 550; 630; 750; 950
Cleat Pitch=330 400-1400
CP, open & closed Cleat Height=25
Cleat Width=450; 550; 750
Cleat Pitch=330 500-1200
CP, open Cleat Height=32
Cleat Width=580; 630; 750
Cleat Pitch=330 700-1400
U, closed Cleat Height=15; 32
Cleat Width=550; 700
Cleat Pitch=350; 400 650-1200
Multi-V, full width Cleat Height=6
Cleat Width= full belt width
Cleat Pitch= 76 500-2000
| Business Type | Manufacturer, Supplier |
| Country of Origin | India |
| Material | Rubber, PVC,Steel |
| Type | Plastic Belting & Chain |
| Belt Width | 500 - 1000 Mm |
| Belt Thickness | 11 -15 Mm |
| Length Of Belt | 200 Mtrs |
| Tensile Strength | 200/2 to 2000/5 |
Preferred Buyer From
| Location | Anywhere in India |
APPLICATION
Sidewall belt conveyor is widely used in:
Ceramic Industry,
Construction industry,
port,
metallurgy,
mining,
electricity,
coal,
casting,
building materials,
food,
Agriculture,
Recycling Industry,
chemical industry material conveying.
FEATURES
1. Corrugated sidewall conveyor belt Can be used at steeper angles up to 90degree;
2. Ideal for transporting powdery and lumpy materials;
3. Can transport high volumes without any spillage;
4. Corrugated sidewall conveyor belts are adequately rigidity;
5. Do not buckle under compression;
6. Tear and gauging resistance;
7. Enhanced durability;
8. Lower maintenance cost;
DATASHEET
Sidewall Type Data(mm) Min. Pulley Dia. (mm)
N Height=80
Width=44
Base Width=50
Pitch=42 200
Height=100
Width=44
Base Width=50
Pitch=42 250
S Height=120
Width=66
Base Width=75
Pitch=63 315
Height=160
Width=66
Base Width=75
Pitch=63 400
Height=200
Width=66
Base Width=75
Pitch=63 500
Height=240
Width=66
Base Width=75
Pitch=63 630
Height=280
Width=66
Base Width=75
Pitch=63 700
Height=300
Width=66
Base Width=75
Pitch=63 800
ES Height=300
Width=88
Base Width=100
Pitch=84 800
Height=400
Width=88
Base Width=100
Pitch=84 1000
T Cleat Type T75 T110
Height(mm) 75 110
Min. Pulley Dia. (mm) 200 300
TCS Cleat Type TCS280 TCS360
Height(mm) 280 360
Min. Pulley Dia. (mm) 700 700
TC Cleat Type TC110 TC140 TC180 TC220
Height(mm) 110 140 180 220
Min. Pulley Dia. (mm) 350 370 450 500
